Introduction to how many solar panels required for 10kw Solar System
Aaj kal Pakistan me electricity ke high bills aur load shedding ki wajah se solar energy kaafi popular ho rahi hai. Ek 10kW solar system un logon ke liye best option hai jo apni zyada electricity khud generate karna chahte hain. Ye system normally ek average ghar, choti factory ya office ki demand easily fulfill kar sakta hai.
Pakistan me log 10kW solar system is liye prefer karte hain kyunke ye ek balanced aur powerful system hai jo net metering ke sath monthly bijli ka bill almost zero tak kar deta hai. Is setup ki demand Lahore, Karachi, Islamabad aur dusre shehron me rapidly barh rahi hai kyunke long-term me ye affordable aur reliable solution ban gaya hai.
Table of Contents
How Many Solar Panels for a 10kW System?
Basic formula:Number of panels = 10,000 W ÷ Panel Wattage → result ko round up karna hota hai.
Quick Examples (10kW target)
- 370W panels: 10,000 ÷ 370 ≈ 27.0 → 27 panels (≈ 9.99 kW DC)
- 450W panels: 10,000 ÷ 450 ≈ 22.2 → 23 panels (≈ 10.35 kW DC)
- 550W panels: 10,000 ÷ 550 ≈ 18.2 → 19 panels (≈ 10.45 kW DC)
- 600W panels: 10,000 ÷ 600 ≈ 16.7 → 17 panels (≈ 10.2 kW DC)
Note: 10kW ko exactly hit karna zaroori nahi—slight DC oversizing (10–15%) normal hai, specially on-grid/hybrid inverters ke saath, taa ke subah/shaam aur garmiyon ki derating cover ho jaye.

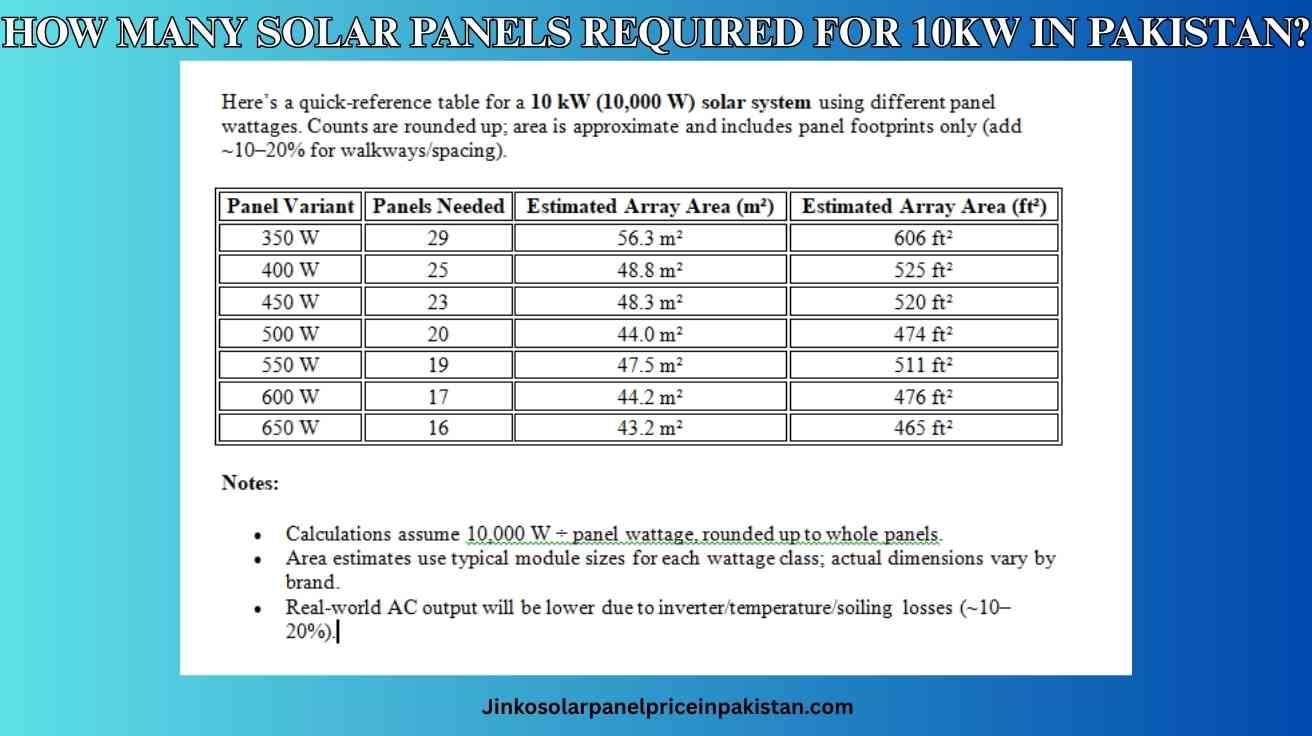

Roof Space Estimate (Rule of Thumb)
| Panel Wattage | Panels | Typical Area per Panel | Total Roof Area (approx) |
| 370W | 27 | ~1.94 m² | ~52–55 m² |
| 450W | 23 | ~2.0 m² | ~45–48 m² |
| 550W | 19 | ~2.2 m² | ~42–45 m² |
| 600W | 17 | ~2.3 m² | ~39–42 m² |
Panel sizes brand/model pe depend karte hain, lekin approx area yeh rehta hai:
Tip: Agar roof space limited hai to higher-watt (550–600W) panels behtar rahte hain—kam panels, kam mounts, aur neat layout.
Real-World Generation (Pakistan Context)
Location, tilt, temperature, aur system losses matter karte hain. Pakistan mein 10kW system aam tor pe:
- ~35–50 kWh/day (season/location dependent)
- Thandee mausam + clear skies → upar ki range
- Garmiyon mein panel heat derating + dhool → niche wali range
Performance factors: tilt (25–30° North-facing in most of Pakistan), shading zero, saaf panels, quality MPPT inverter, achhi wiring.
Inverter & DC/AC Sizing
- On-Grid/Hybrid: 10kW inverter ke saath 10–11.5 kW DC panels common practice hai (DC/AC ratio ~1.0–1.15).
- Off-Grid: Zyada DC aur battery bank sizing carefully plan karein; surge loads (ACs, motors) dhyaan mein rakhein.
Wiring, Structure & Layout Tips
- Strings: Same panel model & similar irradiance strings mix na karein.
- MMPT Matching: Har MPPT pe equal/compatible strings rakhna.
- Mounting: Hot-climate ventilation zaroori—roof se airflow ke liye gap chhodein.
- Soiling: Dusty areas mein fortnightly cleaning se 5–10% tak gain mil sakta hai.
Kaun sa Wattage Choose Karun?
- Budget-friendly & widely available: 450–550W
- Space-optimized / fewer panels: 550–600W
- Lower BOS cost: High-watt panels = kam rails, clamps, wiring runs → installation cost thora kam
Quick Selector (at a glance)
- Small roof? 17 × 600W ≈ 10.2 kW DC
- Balanced choice? 19 × 550W ≈ 10.45 kW DC
- Tight budget? 23 × 450W ≈ 10.35 kW DC
Key Factors That Affect the Number of Panels
How many solar panels required for 10kw ka jawab har user ke liye thoda different ho sakta hai kyunke kuch key factors effect karte hain.
Sabse pehla factor hai solar panel efficiency. Agar aap A-grade ya Tier-1 panels use karte ho to unki efficiency zyada hoti hai aur kam panels me bhi desired output milta hai. Dusra important factor hai sunlight hours in Pakistan. Lahore, Karachi aur Sindh ke shehron me sunlight hours zyada hain is liye panels zyada electricity produce karte hain.
Ek aur factor hai roof space requirements. Agar aapke ghar ya factory ki roof choti hai to high wattage panels choose karna best hoga. Saath hi, on-grid vs. off-grid system bhi difference create karta hai. On-grid system me net metering se zyada benefit hota hai jabke off-grid system me batteries ki wajah se cost aur space dono barh jate hain.
Cost of a 10kW Solar System in Pakistan
Jab hum baat karte hain 10kW solar system cost in Pakistan ki, to ye alag alag brands aur components par depend karta hai. Normally 10kW solar system ki installation cost Rs. 15 lakh – Rs. 18 lakh ke darmiyan hoti hai, agar aap A-grade panels aur branded inverter use karte ho.
Market me Jinko, Longi aur Canadian Solar panels kaafi popular hain. Inverters ke liye Inverex, Solis aur Fronius ki demand high hai. Agar aap comparison karo to Jinko panels cost-effective hain jabke Longi zyada durable mana jata hai. Long-term me ye system aapko 7-8 saal me apna paisa recover kar deta hai aur uske baad aapko free electricity milti hai.
Applications of a 10kW Solar System
Ek 10kW solar system in Pakistan multiple applications ke liye use hota hai. Sabse common application hai residential households jahan per 10kW system ACs, refrigerators, fans, LED lights aur geyser tak easily chalata hai.
Dusra major use hai small businesses jahan shops, offices aur bakeries ki load requirement is system se cover hoti hai. Iske ilawa, ye setup backup during load-shedding bhi provide karta hai agar aap hybrid ya off-grid system install karte ho. Yani ye ek complete energy solution hai jo Pakistan me energy crisis ke dor me kaafi valuable hai.
Advantages of Installing a 10kW Solar System
Ek 10kW solar panel system install karne ke multiple faide hain. Sabse bada benefit hai reduction in electricity bills. Agar aapka bijli ka monthly bill Rs. 50,000 ke aas paas hai to 10kW system easily isko zero tak reduce kar sakta hai.
Dusra faida hai net metering benefits. Aap apne extra units WAPDA grid ko bech kar paisa kama sakte ho. Saath hi ye system environmental sustainability ko promote karta hai kyunke solar energy pollution free aur renewable hai. Matlab financial aur environmental dono aspects me ye ek ideal choice hai.
Conclusion
Agar hum final baat karein ke how many solar panels required for 10kw in Pakistan, to jawab panel wattage aur efficiency par depend karta hai. Normally 17–27 panels ke darmiyan aapko chahiye hote hain, jo 10kW system complete banate hain.
Ye system ek ideal solar choice in Pakistan hai jo gharon aur businesses dono ke liye perfect hai. Is se aap bijli ka bill zero kar sakte ho, environment friendly energy use karte ho aur long-term me apni investment recover kar lete ho.
Readmore: CM e-Bikes Scheme – Subsidized Electric & Petrol Bikes for Students in Punjab
FAQs – How Many Solar Panels for 10kW?
How many 550W panels are needed for 10kW?
You need around 19 panels of 550W to make a 10kW solar system.
How much electricity does a 10kW solar system produce?
A 10kW system in Pakistan produces 40 to 45 units per day depending on sunlight.
How much roof space is required for 10kW?
Around 700–800 square feet of roof space is required for 10kW solar panels.
What is the difference in panels for on-grid vs. off-grid?
On-grid requires fewer panels as it directly connects to the grid, while off-grid requires extra panels and batteries.
How much does a 10kW solar system cost in Pakistan?
On average, it costs between Rs. 15 lakh to Rs. 18 lakh with quality components.
Can a 10kW solar system run 2 ACs and other appliances?
Yes, a 10kW system can run 2–3 ACs along with other household appliances easily.
How long does it take to recover the cost of a 10kW system?
Usually 7–8 years, after which electricity is almost free.
Which solar panel brand is best for 10kW in Pakistan?
Jinko, Longi, and Canadian Solar are considered the best choices.
Can I use net metering with a 10kW system?
Yes, 10kW is the most recommended size for net metering in Pakistan.
Is 10kW enough for a large family house in Pakistan?
Yes, for most large family houses, a 10kW system is more than sufficient.
