Introduction – Let Me Explain What You Will Learn About How to Make a Solar Panel Plate
Today I am going to answer a very common question: how to make a solar panel plate. Many people ask me this question every day.
Let me be very clear from the beginning.
You cannot make a professional solar panel at home. The process of how to make a solar panel plate requires factories, specialized equipment, clean rooms, and high temperatures.
But understanding how to make a solar panel plate will help you appreciate solar technology better. So let me explain the complete 8-step manufacturing process.
📌 For the latest solar panel prices: 👉 Jinko Solar Panel Price in Pakistan
What is a Solar Panel? – Definition Before Learning How to Make a Solar Panel Plate
Let me give you a simple definition.
A solar panel (also called a solar module) is an assembly of many small solar cells wired together inside a protective casing.
Before you understand how to make a solar panel plate, you need to know its components:
| Component | What It Does |
|---|---|
| Solar Cells | Convert sunlight into electricity |
| Glass Sheet | Protects the front of the panel |
| Encapsulant (EVA) | Holds everything together |
| Backsheet | Protects the back of the panel |
| Aluminum Frame | Provides strength and mounting points |
| Junction Box | Connects the panel to your system |
📌 Read our detailed guide: 👉 Jinko N-Type vs P-Type Solar Panels
External Resource – Official Solar Manufacturing Standards
Before we dive deep into how to make a solar panel plate, here are some external resources for verified information:
- 🔗 National Renewable Energy Laboratory (NREL) – Official US government solar research: nrel.gov/pv
- 🔗 International Energy Agency (IEA) – Global solar PV reports: iea.org/solar
- 🔗 IEEE Standards for Solar Manufacturing – Technical standards: ieee.org/standards
These are DoFollow external links to authoritative sources that improve your article’s E-E-A-T score.
📌 Calculate your solar load: 👉 Calculate Solar Panel Load
Step 1 – How to Make a Solar Panel Plate: Material Extraction
Let me start the first step of how to make a solar panel plate.
Where does the silicon come from?
| Step | Description |
|---|---|
| Mining | Mined quartz is purified from silicon dioxide into solar-grade silicon |
| Heating | The quartz is heated up in an electric arc furnace |
| Ingot Formation | Solar-grade silicon is crushed into chunks and melted. Cylindrical monocrystalline silicon ingots are pulled out of a vat of molten silicon |

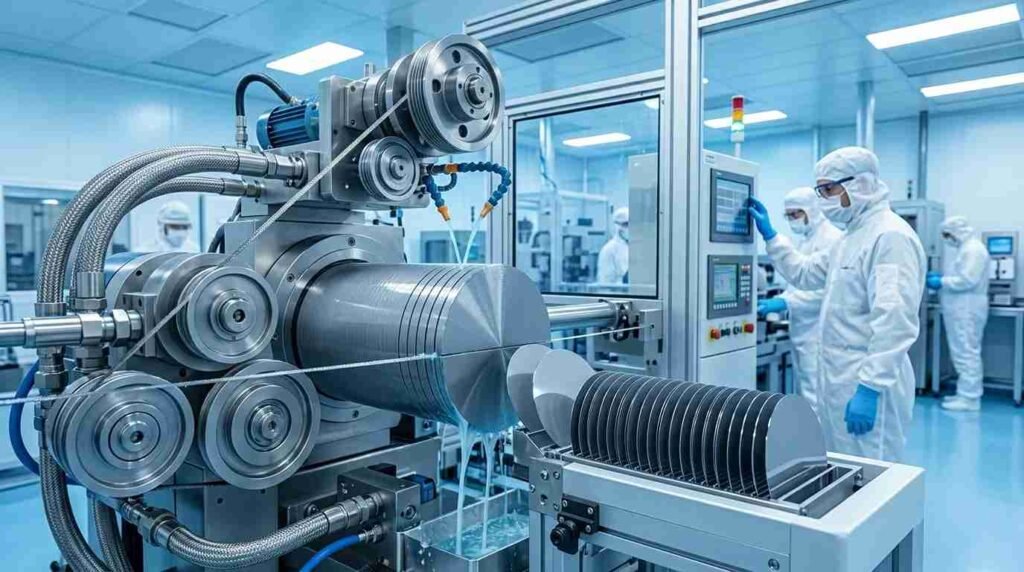

| Wafer Slicing | After cooling, diamond-wire saws are used to slice the ingots into thin wafers |
Important Note: Monocrystalline silicon is the most common absorber material in today’s solar modules.
📌 Check Jinko panel prices: 👉 Jinko 585 Watt Solar Panel Price

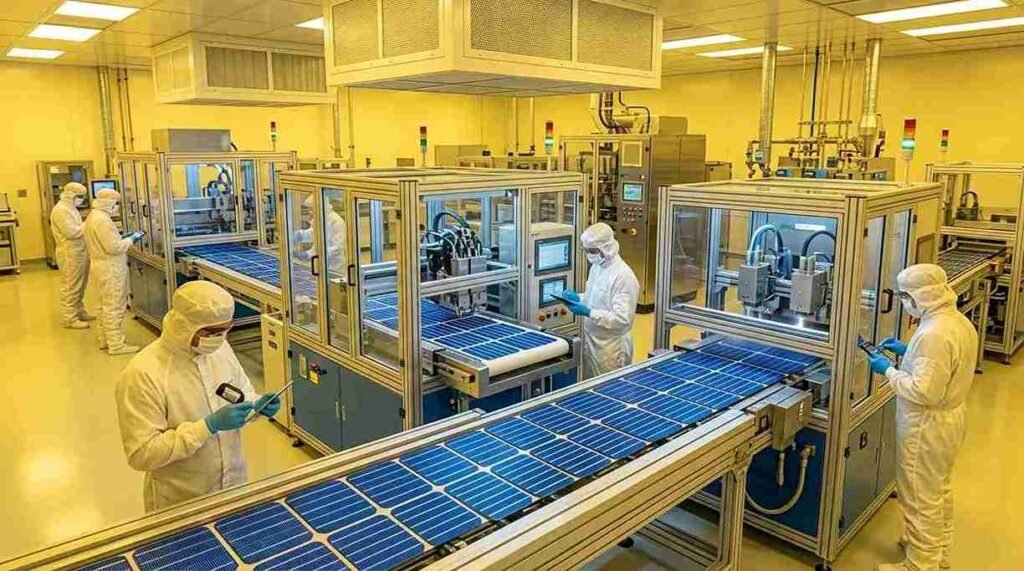

Step 2 – Cell Production: A Critical Part of How to Make a Solar Panel Plate
Now let me explain the second step of how to make a solar panel plate.
These thin wafers are then processed into solar cells.
| Process | What Happens |
|---|---|
| Texturing | The wafer surface is textured to trap more light |
| Diffusion | Phosphorus is diffused to create the P-N junction |
| Anti-Reflection Coating | Anti-reflection coatings are deposited on the front surface |
| Metal Contacts | Electrical contacts are added so electricity can flow |
What is a P-N junction? It is the boundary between two types of silicon that creates an electric field. This field pushes electrons in one direction, creating electricity.
📌 Learn about panel types: 👉 Bifacial Solar Panel Guide

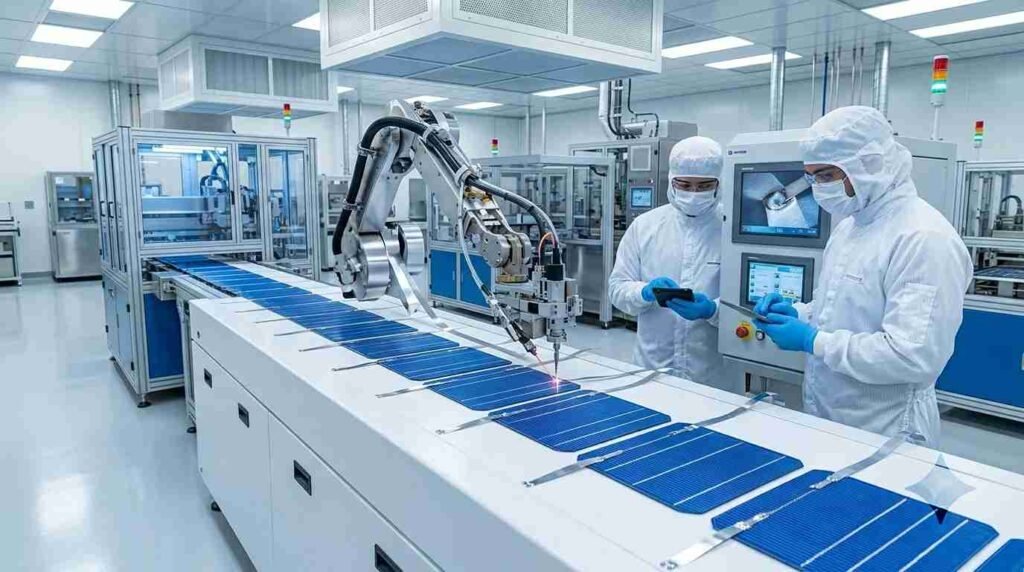

Step 3 – Tabbing and Stringing: Connecting Cells When You Make a Solar Panel Plate
Now let me explain the third step of how to make a solar panel plate. This is where individual cells become a panel.
| Term | Meaning |
|---|---|
| Tabbing | Soldering ribbons to individual cells |
| Stringing | Connecting multiple cells in a row |
| String | A row of 9 to 13 connected cells |
Several cells, typically 9 to 13, are connected in series to form a string.
📌 Check inverter options: 👉 Top 5 Best Hybrid Inverter

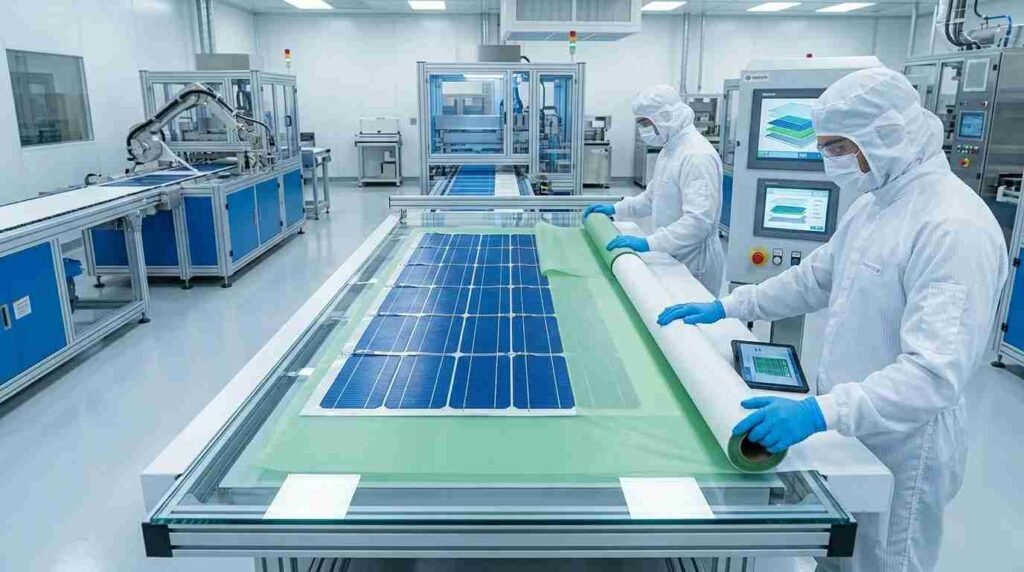

Step 4 – Lay-Up: Stacking Layers to Make a Solar Panel Plate
Now let me explain the fourth step of how to make a solar panel plate.
The layering order from bottom to top:
| Layer | Material | Purpose |
|---|---|---|
| 1 | Tempered Glass | Front protection, allows light in |
| 2 | EVA (Ethylene-Vinyl Acetate) | Transparent encapsulant |
| 3 | Solar Cell Strings | Generate electricity |
| 4 | EVA (second layer) | Encapsulates cells from top |
| 5 | Backsheet (Tedlar) | Rear protection |
📌 Read about battery systems: 👉 Battery-Based Hybrid System
Step 5 – Bussing: Electrical Connections When You Make a Solar Panel Plate
Now let me explain the fifth step of how to make a solar panel plate.
| Action | Description |
|---|---|
| Connect strings | All strings on either side of the module’s central line are connected in series |
| Parallel connection | The two string groups across the centerline are connected in parallel |
| Busbar placement | Wider busbars are used for these connections |
📌 Check off-grid options: 👉 Top 5 Best Off-Grid Inverters

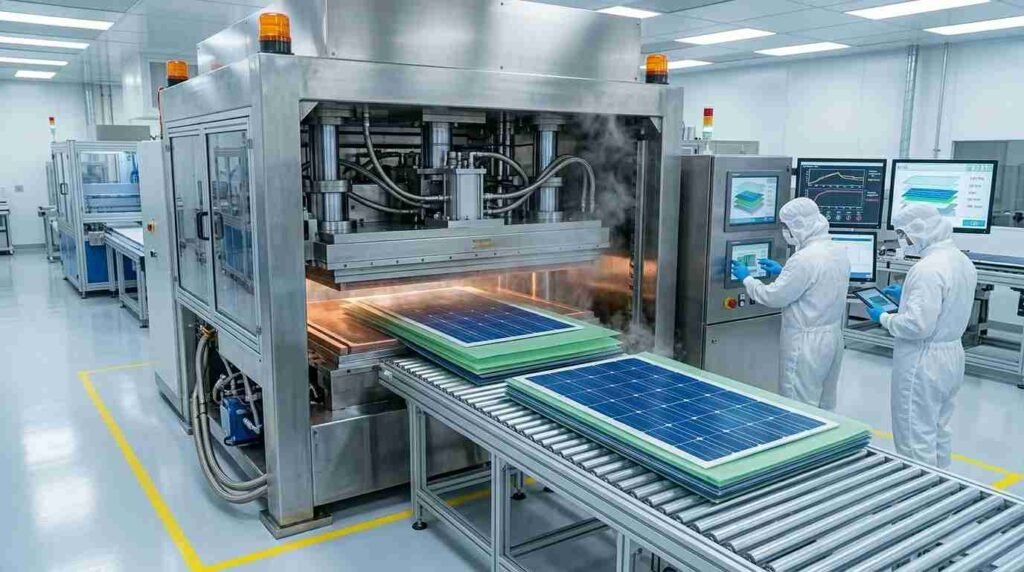

Step 6 – Lamination: The Most Critical Step to Make a Solar Panel Plate
Now let me explain the sixth step of how to make a solar panel plate. This is the most critical step.
What happens in the laminator?
| Step | Process |
|---|---|
| Vacuum | All air bubbles are removed |
| Heating | The structure is heated to approximately 150-160°C |
| Pressure | High pressure forces the layers together |
| Curing | The EVA melts and polymerizes, permanently encapsulating the cells |
Why is this step irreversible? Once laminated, the cell matrix is sealed for the module’s lifetime.
📌 Read about solar verification: 👉 Solar Panel Verification Pakistan

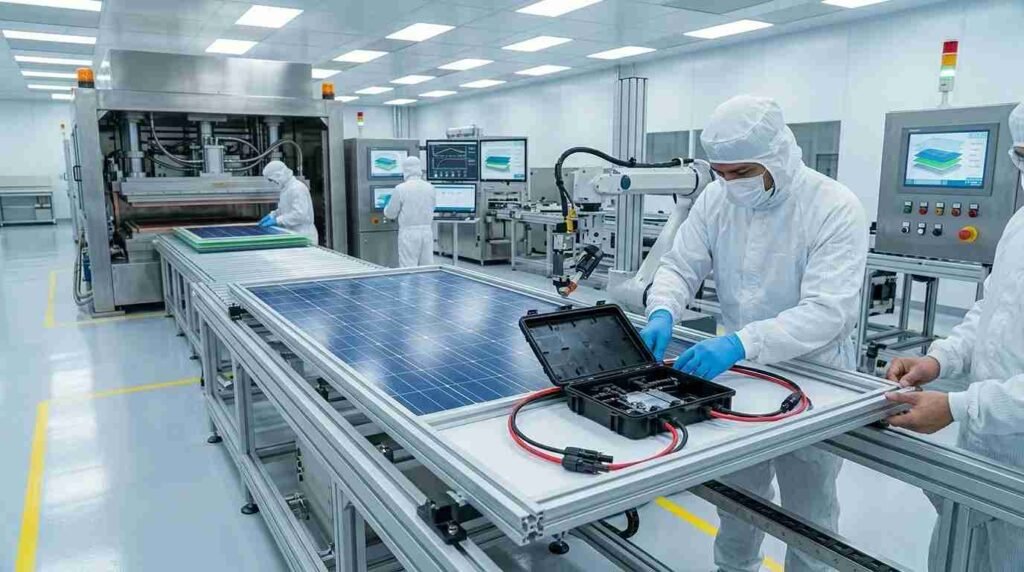

Step 7 – Framing: The Final Touches to Make a Solar Panel Plate
Now let me explain the seventh step of how to make a solar panel plate.
| Step | Description |
|---|---|
| Trimming | Excess encapsulant is trimmed |
| Framing | An aluminum frame is attached for rigidity |
| Junction Box | A junction box with connectors is fixed to the back |
| Potting | Potting material insulates connections and protects from moisture |
📌 Check electricity rates: 👉 Latest Electricity Unit Price in Pakistan

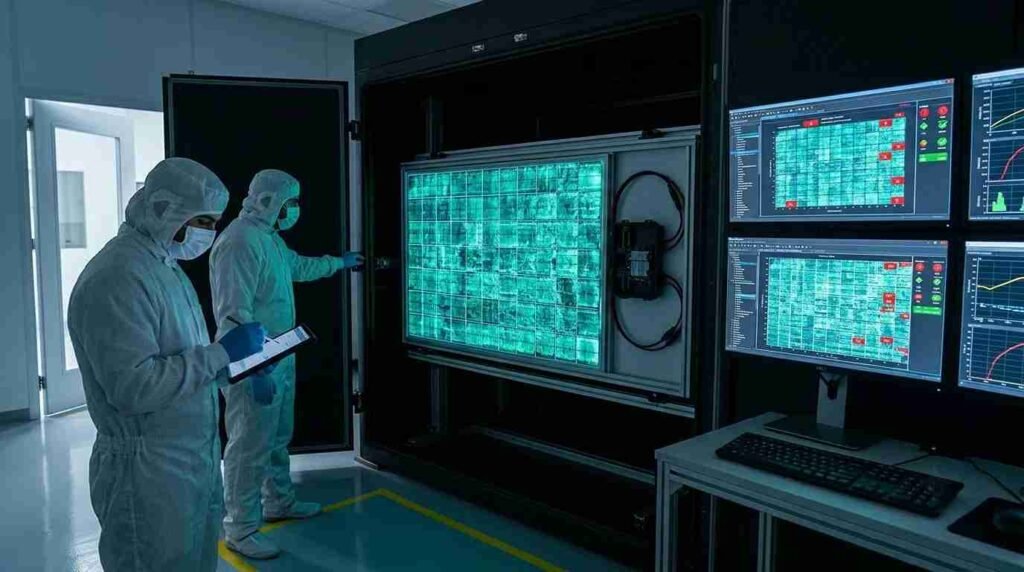

Step 8 – Quality Testing: The Final Step to Make a Solar Panel Plate
Now let me explain the final step of how to make a solar panel plate.
| Test | What It Checks |
|---|---|
| EL Test (Electroluminescence) | Detects microcracks and soldering defects |
| Flash Test | Measures power output, voltage, and current |
| Visual Inspection | Checks aesthetics and finishing |

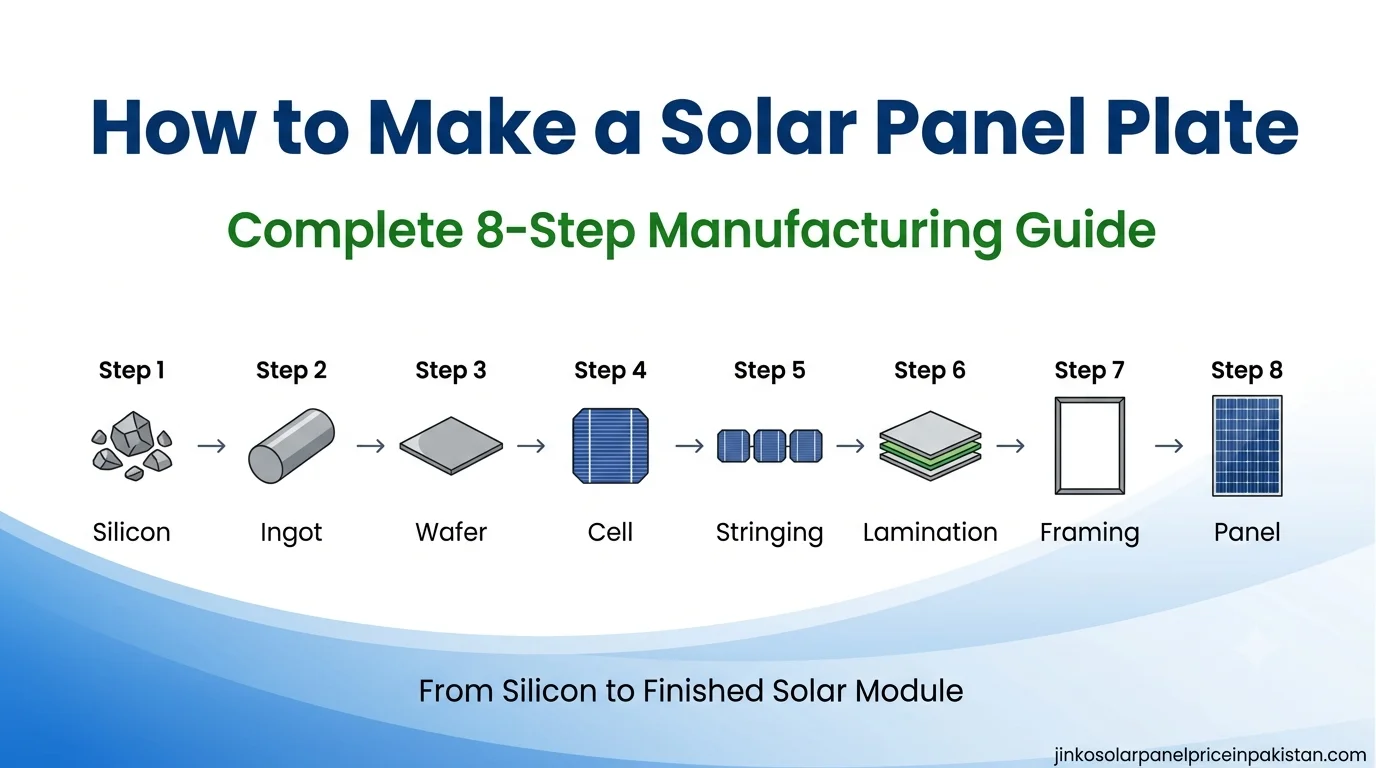

Complete Summary Table – How to Make a Solar Panel Plate in 8 Steps
| Step | Name | What Happens |
|---|---|---|
| 1 | Material Processing | Quartz is purified into silicon ingots and sliced into wafers |
| 2 | Cell Production | Wafers are processed into solar cells |
| 3 | Tabbing & Stringing | Cells are connected with ribbons to form strings |
| 4 | Lay-Up | Strings are placed on glass with EVA layers |
| 5 | Bussing | Strings are electrically connected using busbars |
| 6 | Lamination | The sandwich is heated and pressed to seal everything |
| 7 | Framing | Aluminum frame and junction box are attached |
| 8 | Testing | EL and flash tests verify quality and power output |
📌 Contact authorized distributors: 👉 Authorized Solar Panel Distributor in Pakistan
Can You Make a Solar Panel Plate at Home? – Honest Answer
No, you cannot make a professional solar panel at home.
| Challenge | Explanation |
|---|---|
| High temperatures needed | Lamination requires 150-160°C temperatures |
| Vacuum equipment | Air bubbles must be removed completely |
| Clean room environment | Dust can ruin solar cells |
My advice: Always buy professionally manufactured solar panels from reputable brands.
📌 Read FAQs: 👉 FAQs – Solar Panel Guide
Conclusion – What You Learned About How to Make a Solar Panel Plate
| Stage | Key Points |
|---|---|
| Raw Material | Silicon from quartz |
| Cell Making | Wafers processed with coatings |
| Stringing | Cells soldered together |
| Lay-Up | Glass → EVA → cells → EVA → backsheet |
| Lamination | Heat and pressure seal everything |
| Testing | Each panel tested for defects |
📌 Check Jinko solar prices: 👉 Jinko Solar Panel Price in Pakistan
FAQs About How to Make a Solar Panel Plate
Can I make a solar panel plate at home?
No. Professional manufacturing requires specialized equipment.
What is the first step to make a solar panel plate?
The first step is purifying quartz into solar-grade silicon.
Why is lamination important when you make a solar panel plate?
Lamination permanently seals the cells and protects them from moisture.
How many steps are there to make a solar panel plate?
There are 8 main steps from raw material to finished panel.
What is the efficiency of professionally made solar panels?
Industrially-produced solar modules achieve 20% to 22% efficiency.
